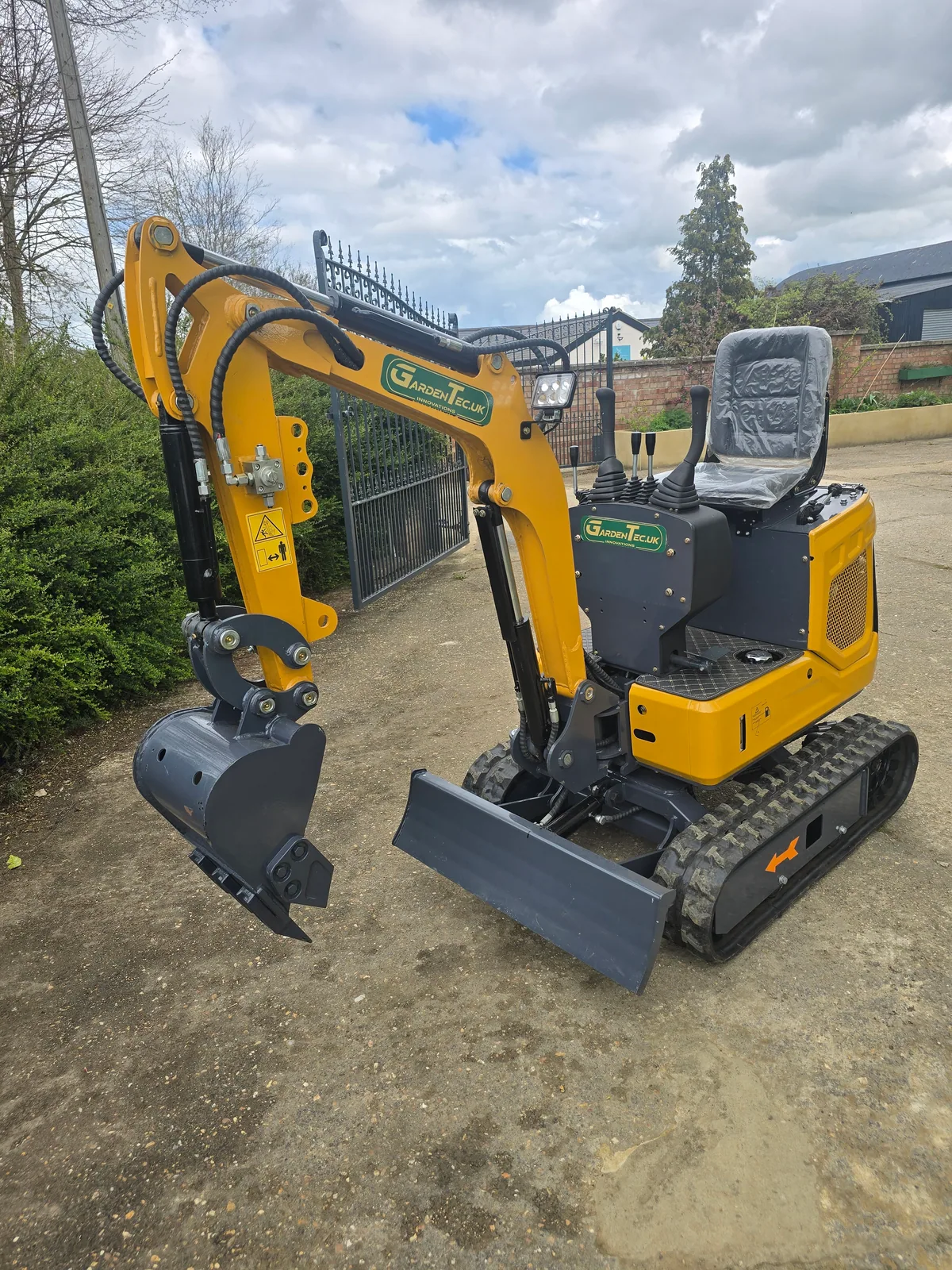

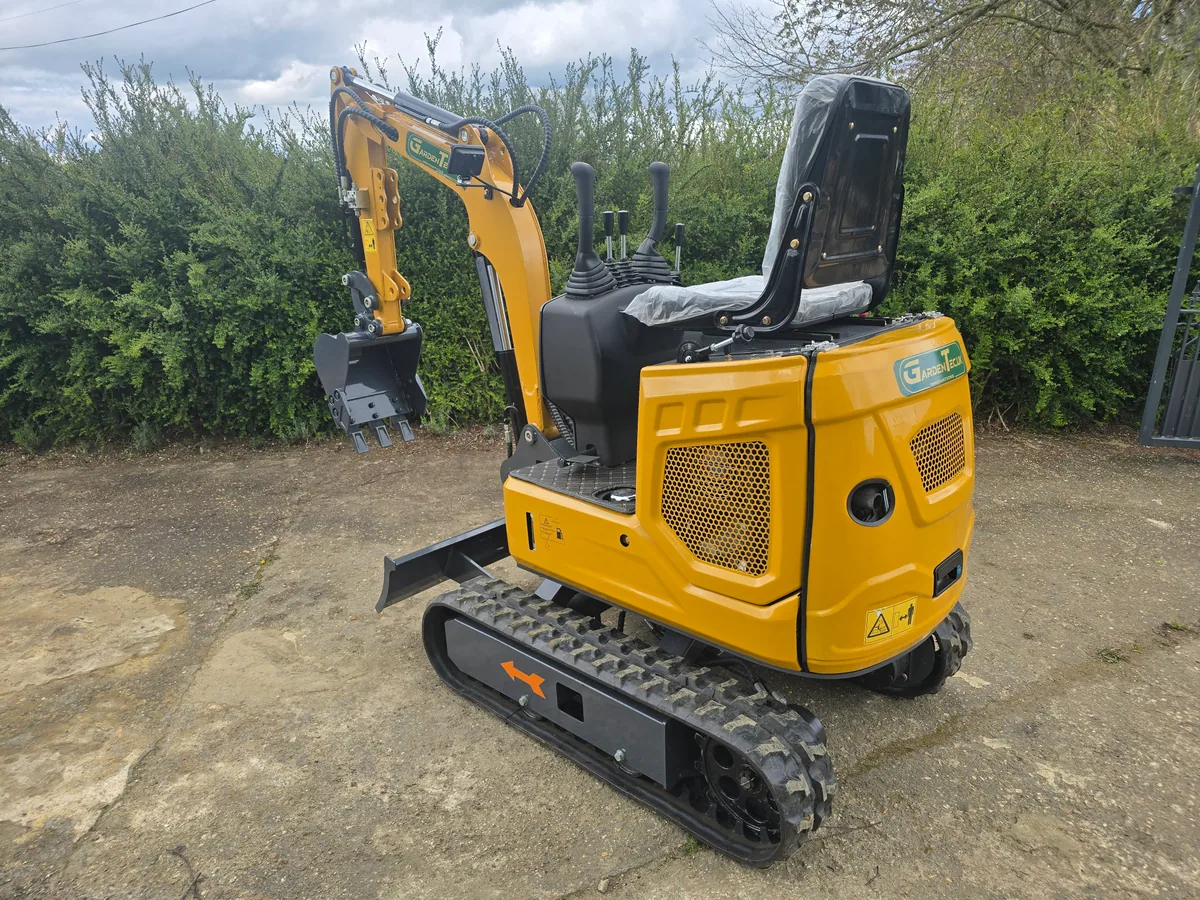

The narrow GT630 is intended for gardens and other restricted-access work areas, combining compact dimensions with a swing boom and auxiliary hydraulics.

Benefits

  • Compact access through standard doorways
  • Designed for gardens and other restricted-access work

Features

  • Longer track for improved stability
  • Optional removable roof
  • Swing boom
  • Hydraulic oil cooler
  • Briggs & Stratton Euro V / EPA petrol engine

Compatible attachments

Specifications

Operating weight
630 kg
Engine
Briggs & Stratton 13.5 HP petrol
Boom
Swing boom as standard
Boom swing left / right
45° / 45°
Auxiliary hydraulics
3-way hydraulic valve as standard
Cylinder protection
Boom
Hydraulic pump
Single
Hydraulic flow rate
21 L/min
Hydraulic tank capacity
18 L
Oil cooler included
Yes
Canopy
Optional - removable
Controls
ISO - Manual Control
Certification
CE and Euro Stage V
Overall size
721 mm W × 2010 mm L × 2100 mm H (including canopy)
Driving speed
1.8 km/h
Swing speed
TBC
Bucket digging force
TBC
Maximum noise LWA
93 dB(A)
Track width
180 mm rubber track
Track length
1220 mm
Attachment specification
25 mm pin; 90 mm dipper gap; 90 mm pin-centre gap
Warranty
1 year or 1,200 hours - parts and labour
Maximum digging height
2000 mm
Maximum digging depth
1200 mm
Fuel capacity
6.6 L
