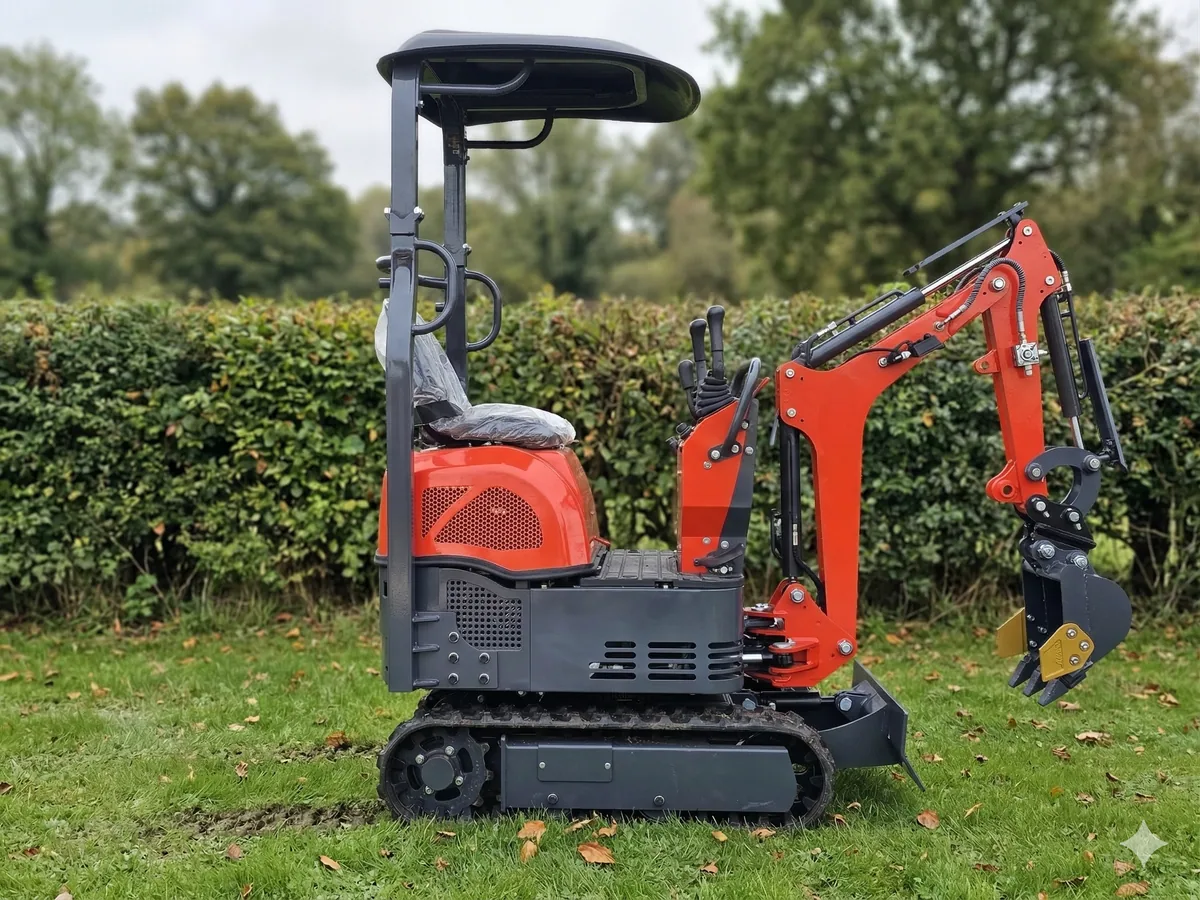

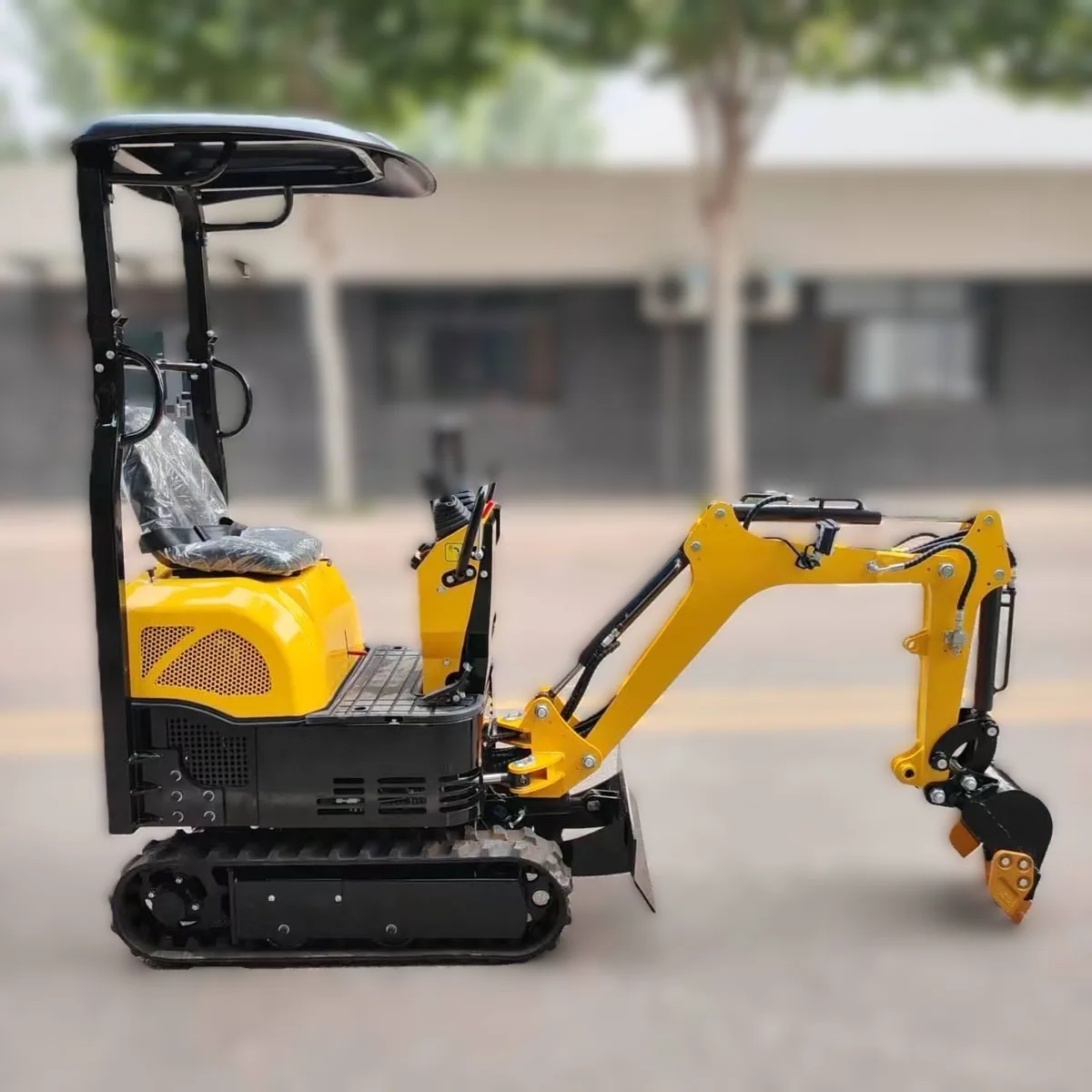

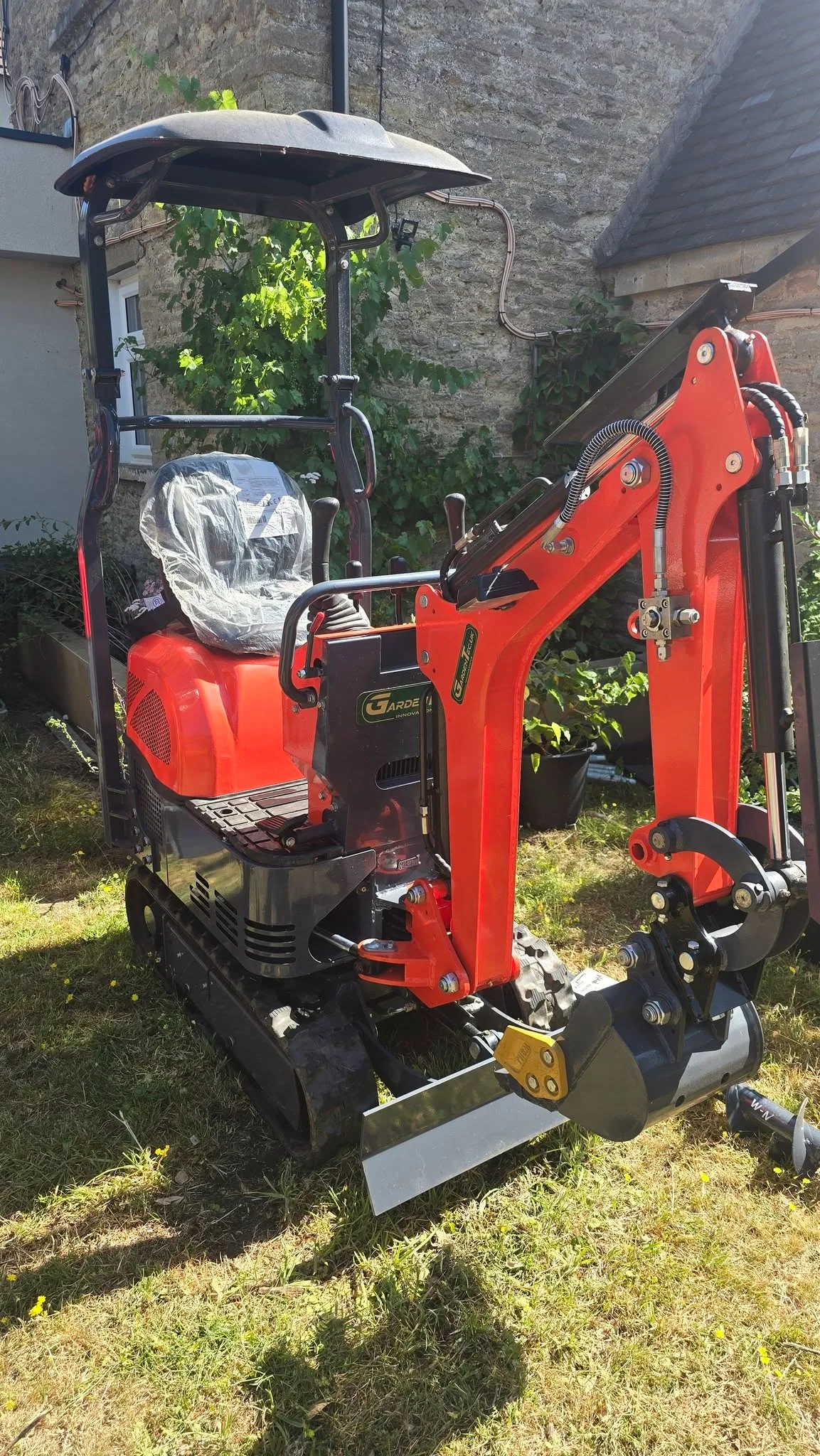

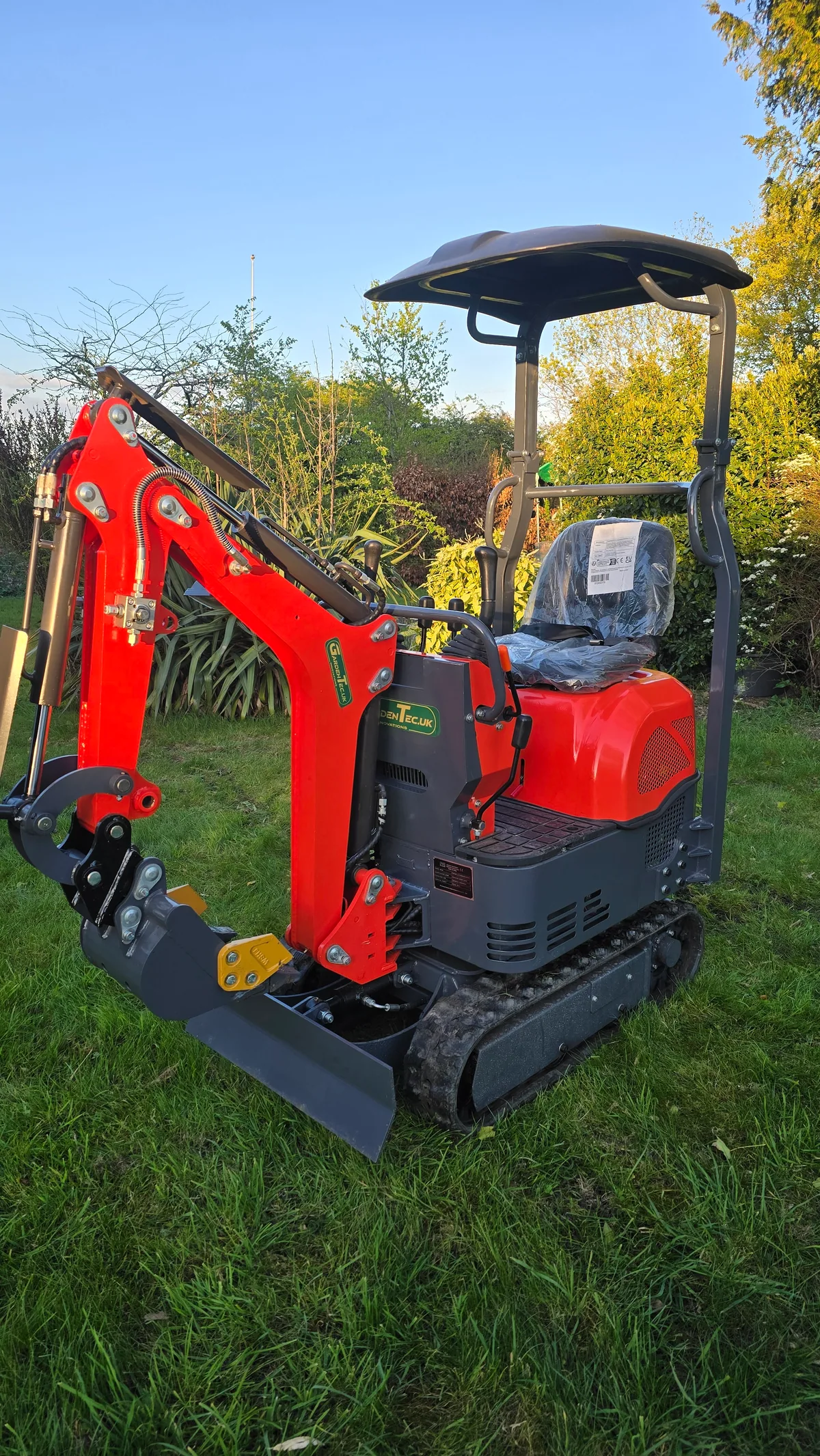

At 690 millimetres wide, the GT620M is designed to fit through many doorways and garden gates. It can dig to 1.2 metres and reach up to 2.1 metres. The removable two-column ROPS canopy supports transport in a small van and access beneath low obstructions. Its LCT Lister petrol engine produces 6.5 kilowatts, while the double hydraulic pump and three-way auxiliary valve support compatible hydraulic attachments.

Benefits

  • Compact 690 millimetre width for access through narrow gates and doorways
  • Removable ROPS canopy supports transport and access beneath low obstructions
  • Double hydraulic pump and three-way auxiliary valve support compatible attachments

Features

  • Boom swings 70 degrees to each side for work near walls and obstacles
  • ISO manual controls
  • LCT Lister petrol engine producing 6.5 kilowatts
  • Hydraulic flow rate of 18 litres per minute

Compatible attachments

Specifications

Operating weight
620 kg
Engine
LCT Lister petrol, 6.5 kW
Boom
Swing Boom as Standard
Boom swing left / right
70 degrees left and right
Auxiliary hydraulics
3 Way Hydraulic Valve Fitted
Cylinder protection
Optional Protection Plates
Hydraulic pump
Double
Hydraulic flow rate
18 L/min
Oil cooler included
No
Canopy
Removable ROPS Canopy
Controls
ISO manual control
Certification
CE
Overall size
690mm (W), 1370mm (H) (2080mm H with Canopy), 2330mm(L)
Driving speed
2Km/H
Swing speed
7 RPM
Bucket digging force
9 KN
Maximum noise LWA
96 dB(A) LWA
Track width
690mm
Track length
1140mm
Attachment specification
25 mm pin; 90 mm dipper gap; 90 mm pin-centre gap
Warranty
1 year or 1,000 hours, parts and labour; return to base for repairs
Maximum digging height
2100 mm
Maximum digging depth
1200 mm
